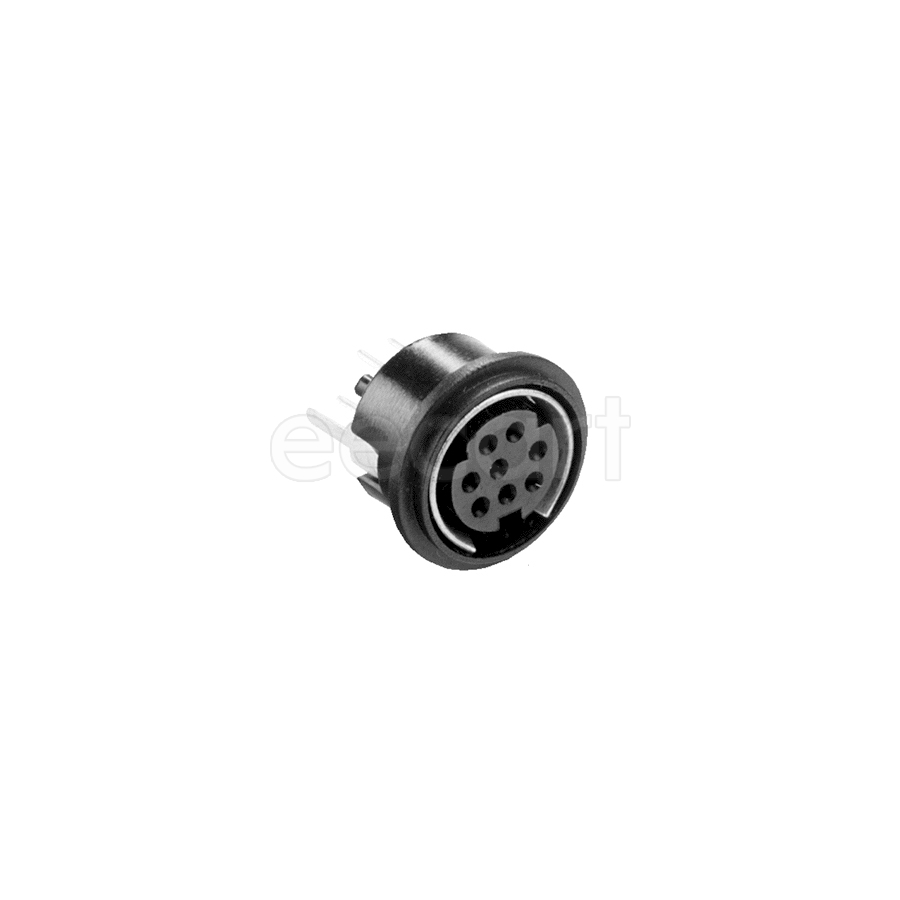

MD-60SV
Manufacturer:
Same Sky
Mfr.Part #:
MD-60SV
Datasheet:
Description:
Circular Connectors Through Hole Solder Receptacle, Female Sockets
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 100 VAC, 12 VDC |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Features | Ground |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 1 A, 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Keyed |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 6 |
| Insulation Material | Plastic |
| Fastening Type | Push-Pull |
| Shell Material | Polybutylene Terephthalate (PBT) |
Stock: 3780
Distributors
pcbx
pcbxUnit Price$1.30736
Ext.Price$1.30736
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30736 | $1.30736 |
| 10 | $1.11058 | $11.10580 |
| 25 | $1.04090 | $26.02250 |
| 50 | $0.99122 | $49.56100 |
| 100 | $0.94379 | $94.37900 |
| 300 | $0.89168 | $267.50400 |
| 500 | $0.84245 | $421.22500 |
| 1000 | $0.79087 | $790.87000 |
| 3000 | $0.74245 | $2227.35000 |
